Make and Model

JP Machine
3D EVO Additive Printer for metal (CUB 4.5)

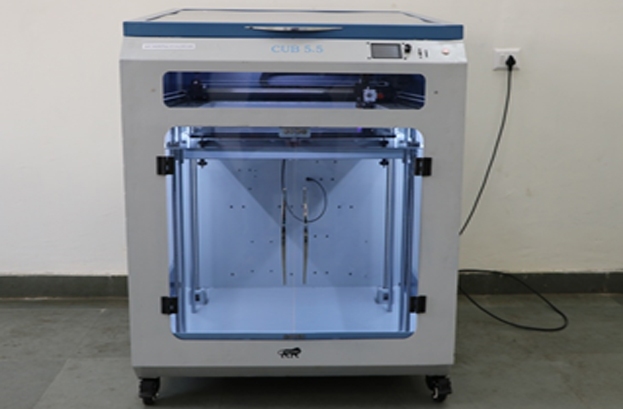

JP Machine
3D Printer (CUB 5.5)

Specifications

• Build Volume: 305L x 305W x 578H mm
• Materials: Metal, PLA, ABS, TPU, etc.
• Filament Dia: 1.75mm
• Positioning Precision: 11 microns (XY - Axes), 10 microns (Z Axes)
• Recommended max Print Speed: 100 – 150 mm / sec
• Nozzel Dia: 0.4mm, 0.6mm, 0.8mm etc.

Specifications

• Build Volume: 550L x 550W x 550H mm
• Materials: PLA, ABS, TPU, etc.
• Filament Dia: 1.75mm
• Positioning Precision: 11 microns (XY - Axes), 10 microns (Z Axes)
• Printing Speed: 30 – 150 mm / sec
• Nozzel Dia: 0.4mm, 0.6mm, 0.8mm etc.

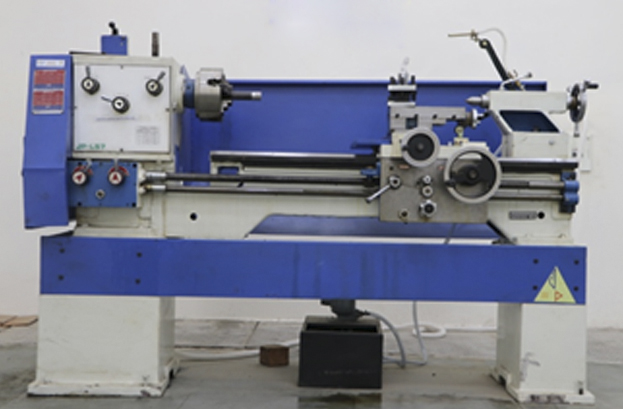

Make and Model

JP Machine
JP-L57

Specifications

• Distance between center: 900 mm
• Height of center: 215 mm
• Swing Over Bed: 425 mm
• Swing Over Cross Slide: 250 mm
• Movement of Cross Slide: 280 mm
• Swing in Gap: 620 mm
• Beb
  • Bed Type - 2V & 2 Flat
  • Bed Width - 279 mm
• Main Spindle
  • Size of Threaded Spindle Nose - 6 T.P.I. 75 mm
  • Taper Bore in Spindle Sleeve - MT-4
  • Spindle Bore - 52 mm
• Tail Stock
  • Ram Diameter - 50.8 mm
  • Taper Bore in Center Sleeve - MT-4
  • Ram Travel - 150 mm
• Compound Slide
  • Travel of Compound Slide - 150 mm
  • Tool Shank Section – 25 x 25 mm
• Speeds
  • No. of Speeds – 6
  • Range – 40 – 550 RPM
• Thread/No. Range
  • Lead Screw Diameter & Pitch – 25.4 mm x 4 TPI
  • Metric – 20/4 to 60 TPI
• Electric Phase
  • Main Motor (1440 R.P.M. – AC- 3 Phase) – 3 HP/ 440 V

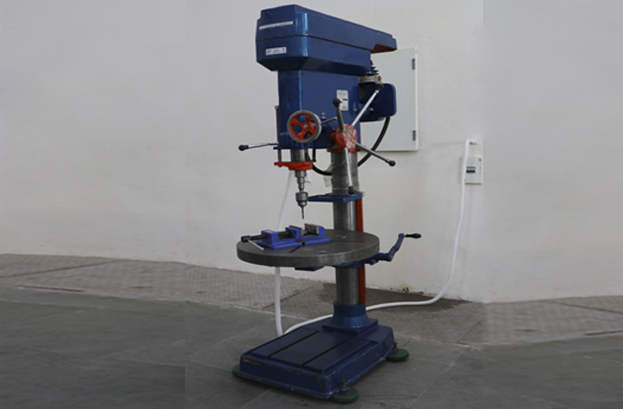

Make and Model

JP Machine
JP-PD 40

Specifications

• Maximum drilling capacity: 35
• Maximum tapping capacity: M16
• Maximum tapping capacity CI: Hardness HB=220): M24
• Distance from spindle axis to column line: 330
• Maximum distance from spindle nose to table: 610
• Maximum Distance from spindle nose to base plate: 1150
• Maximum travel of spindle: 150
• Distance of worktable: 540
• Swivel of table and table rest: + 45°
• Spindle taper: MT-4
• Spindle speed steps: 12
• Spindle speed: 70-2600
• Spindle feed range: 0.07-0.4 (4)
• Diameter of column: 140
• Table size: 500X550
• Base size: 760X500
• Table/base T-slot: 2-14 2-16
• Electric Phase: 3Φ
• Motor power: 1.5

Make and Model

JP Machine
JP-L47WC

Specifications

• Size of worktable: 800 mm x 240 mm
• T slot: 16 mm x 3 x 60 mm
• Max loading weight on worktable: 60kg
• X / Y /Z -Axis travel: 430 mm / 280mm / 400 mm
• Distance between spindle nose and table: 60 – 460mm
• Distance between spindle centre and column: 297 mm
• Spindle taper/tool holder: ISP 30 / BT 30
• Maximum spindle speed range( low step/high step): 40 -8000RPM
• Spindle motor power: 3.7/5.5 KW
• Feeding motor power: X Y Z axis: 1 kw
• Rapid Traverse (X,Y&Z): 8000mm / min
• feeding speed: 0-8000mm/min.
• Minimum set unit(step): 0.001mm(0.01)
• Maximum loading weight of tool: 3.5 kg.
• Number of Tools: 10 / Disc Type

Make and Model

JP Machine
JP-L47CNC

Specifications

• Maximum Swing Over Bed: Ø 480mm
• Maximum Swing Over Solid: Ø 260mm
• Maximum Machining Length Chuck: 390mm
• Spindle Taper Hole: Ø 61mm
• Maximum Bar Diameter with Manual Chuck: Ø 58mm
• Maximum Bar Diameter with Hydraulic Through Chunk: Ø 46mm
• Spindle Head Type: A2-6
• Spindle Speed Range: 50-2000rpm
• Spindle Shift Mode: Servo
• Spindle Rated Torque: 49Nm
• ELECTRIC PHASE: 3Φ
• Main Moto Power: 7.5Kw
• Spindle Moto Maximum Speed Range(30 Min): 11Kw
• Chunk Type: Hydraulic Solid (AUTOGRIP-Taiwan)
• Chunk Size: Ø 250mm
• Rapid Traverse Speed on X Axis: 6m/min
• Rapid Traverse Speed on Z Axis: 9m/min
• Servo Motor Torque on X-Axis: 4Nm
• Servo Motor Torque on Z Axis: 6Nm
• X-Axis Travel: 380mm
• Z Axis Travel: 400mm
• Guide Way Type: Hardened Box Guide Way
• Turret Type: 4 Station Electric Tool Post (Optional 8 Station Tool Turret)
• Turret Change Time: 90°/1.5-180°/2.4 - 270°/3.4 -Sec
• Turning Tool / Boring Bar Size: 25mm x 25mm / Ø 20mm
• Chips Conveyor (Optional): Hinge Belt

Make and Model

JP Machine

Specifications

• Type of welding set: Conventional Rectifier type
• Type of electrode: MS/SS
• Rating of Capacitor to improve power factor: 0.93
• Type of power supply: Three-phase
• Rated input voltage: 415V, three Phase with trapping to compensate for variation in input supply
• Current rating for rectifier type power source in ampere: 400 Ampère
• Maximum Continuous Automatic Current in ampere: 310 Ampère
• Maximum Continuous Hand Welding Current in Amp: 400 Ampère
• Open-Circuit Voltage in Volts: 85 Volt
• Minimum Welding load voltage (at min welding current) in Volts: 22 Volt
• Maximum Welding load Voltage(at max welding current) in Volts: 42 Volt
• Maximum continuous welding current at 100% duty cycle(Amp @ duty cycle): 310 Ampère
• Maximum continuous welding current at 60% duty cycle(Amp @ duty cycle): 400 Ampère
• Type of cooling like natural air cool, force air cool etc: Force Air cool
• Warranty in Years: 2
• Dimension of the electrode in mm: 6.3 millimeter
• Type of wheel: Bi-directional
• Electric Phase: 3Φ

Make and Model

JP Machine

Specifications

• oxygen and acetylene welding Gas Cylinders with welding accessories and carrying trolley: standard pressure
• set of gas nozzles (welding and cutting) and regulators: standard
