Make and Model

Specifications

Make and Model

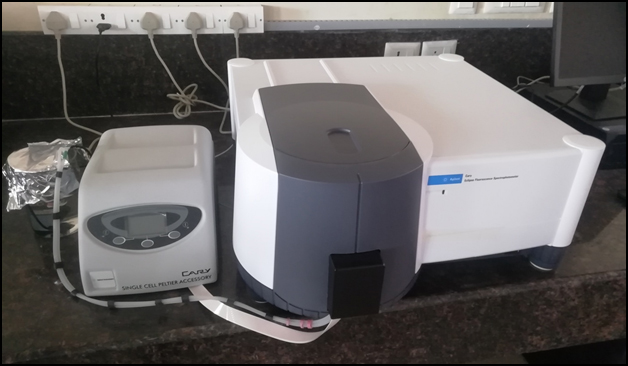

Cary Eclipse with Peltier and Solid Sample Holder
Agilent Technologies

Specifications

• Source: continuous wave source of Xenon Arc Lamp
• Detector spectral range 200-900 nm
• Analysis software enables Spectra scan, 3D-Spectra Scan, quantification, Single read, Time Drive, Kinetics, Anisotropy/Polarization (in both in Spectra Scan and Single Read), Intracellular ion concentration, Quantum yield (Relative and Absolute), Quenching, Lifetime, Absorbance, Wavelength programs, Validation, Pre-Scan, Synchronous scan mode (constant energy and wavelength), 3D Synchronous scan
• Complete Peltier system with all required accessories enabling Peltier effect temperature control, Temperature range 0⁰ C to ~100⁰ C
• Suitable Accessories for Liquid & Solid Samples

Make and Model

Thermo Electron Scientific Instruments LLC, Nicolet iS20

Specifications

• Beam Spiltter: Germanium coated KBr beam splitter
• Wavelength Range: 11000-350 cm^-1
• Spectral resolution: 0.4 cm^-1
• Laser: Temperature-controlled solid-state Near IR Diode laser
• Wavelength precision: 0.01 cm^-1
• Detector: DTGS detector
• Performance Verification: Automated Inbuilt NIST-traceable 1.5 MIL polystyrene film

Make and Model

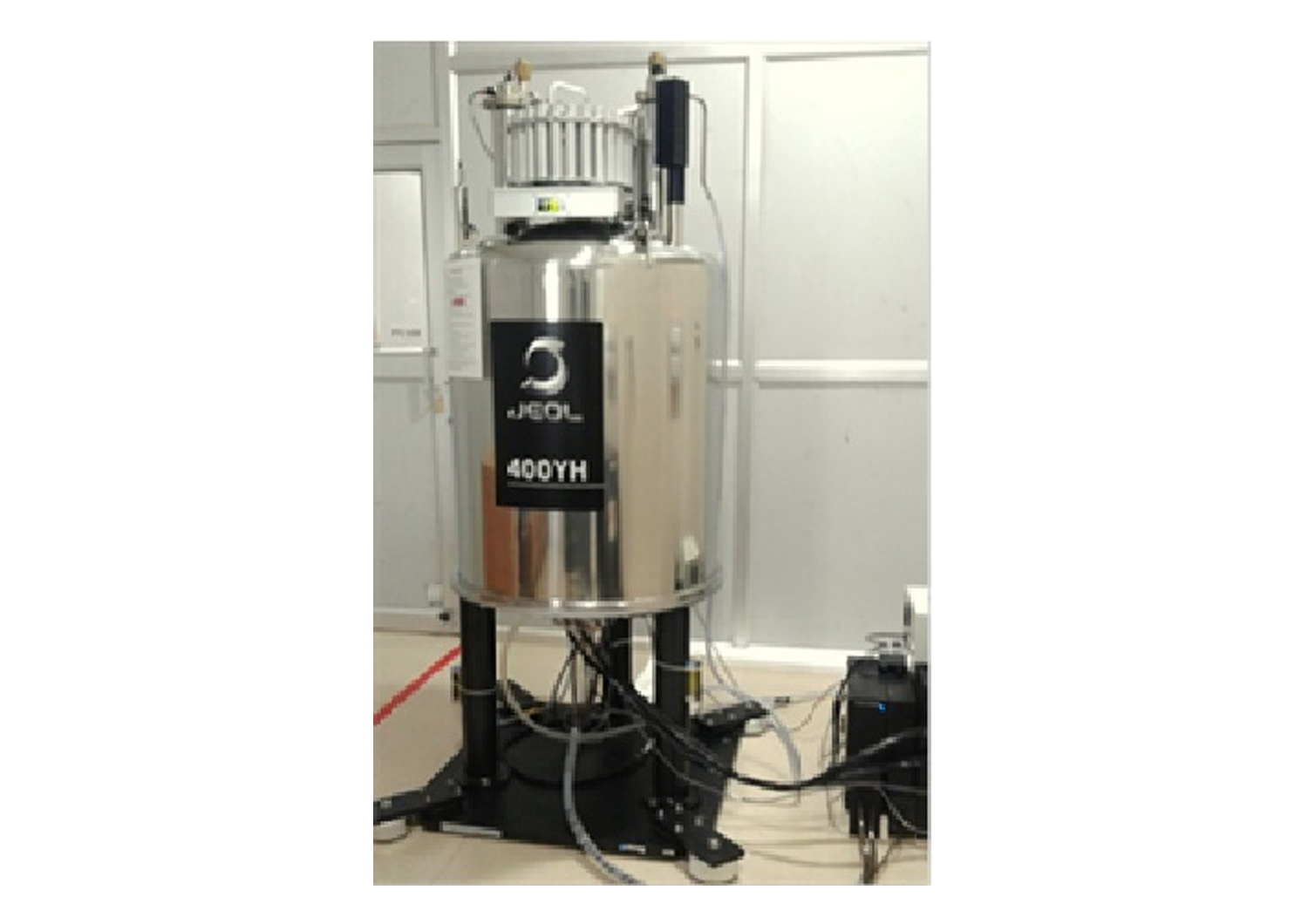

ECZS Series 400 MHz NMR SPECTROMETER
JEOL

Specifications

• Spectrometer Frequency : 400 MHz
• Solution State Probes :
  • Royal Probe - A Multinuclear Probe with Variable temperature facility to cover nuclei preferably 15N to 31P and Variable temperature accessory for -100oC to +150oC. Automatic tuning and matching for all observation Nuclei.
  • TH5 Probe - Observation Nuclei 15N to 31P and 1H and 19F with Automatic tuning and matching for all observation Nuclei.
• Spectroscopy by NoD solvent
• Auto-sampler
• Delta NMR Data Processing Software

Make and Model

XENOCS, Xuess 3.0 HR

Specifications

• Dual Source Module (Genix 3D Cu, 30 Watts, Cu tube with 50 kV & 06. mA / Genix 3D Mo, 50 Watts , Mo tube with 50 kV & 1 mA
• Eiger 2 R 1M with 2D hybrid pixel photon counting detector with direct detection of X-rays with a pixel size of 75 um.
• Ultra High Resolution
• High Resolution
• High Flux
• Very High Flux
• Ultra High Flux
• Full open
• SpecFE based software to control motors slits
• Capillary Flow Cell
• Vacuum compatible capillary flow cell
• Multisample holders for powder and gels
• Multi sample Peltier temperature stage-20 to 150 degree Celsius
• Shear Cell system stage
• Linkam HFSX350 temperature Stage

Make and Model

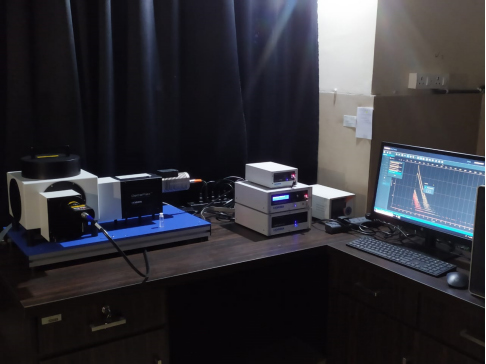

DeltaFlex-01-DD with HPPD detector
Horiba Jobin Yvon IBH Limited

Specifications

• Modular TCSPC lifetime system with emission monochromator, vertically dispersive optics, DeltaDiode pulsed diode excitation. Picosecond detection module, DeltaHub timing electronics, decay analysis software

Make and Model

Agilent Technologies, Cary 5000 with DRS 2500

Specifications

• Double beam, double monochromator, fully automatic
• Source: Tungsten-halogen and deuterium lamps with built-in mechanism in order to automatically switch the light source during the measurement of the entire UV-VIS-NIR wavelength range
• Detector: Photomultiplier tube (PMT) detector for the UV-Vis wavelength range and cooled PbS/InGaS detector for the NIR wavelength range
• Wavelength range: 250-2500 nm
• DRS option for solid samples is also available

Make and Model

XENOCS, Xuess 3.0 HR

Specifications

• Dual Source Module (Genix 3D Cu, 30 Watts, Cu tube with 50 kV & 06. mA / Genix 3D Mo, 50 Watts , Mo tube with 50 kV & 1 mA
• Eiger 2 R 1M with 2D hybrid pixel photon counting detector with direct detection of X-rays with a pixel size of 75 um.
• Ultra High Resolution
• High Resolution
• High Flux
• Very High Flux
• Ultra High Flux
• Full open
• SpecFE based software to control motors slits
• Capillary Flow Cell
• Vacuum compatible capillary flow cell
• Multisample holders for powder and gels
• Multi sample Peltier temperature stage-20 to 150 degree Celsius
• Shear Cell system stage
• Linkam HFSX350 temperature Stage

Make and Model

Panalytical, EMPYREAN-QTY1

Specifications

• X-Ray Generator
  • Operating Voltage: 220-240V, 50 Hz, Single phase
  • Rated voltage: 20-60 KV or better
  • Anode Current 2-60 mA
• Goniometer
  • Operation mode: Theta-Theta
  • Minimum scan speed: θD/θs coupled 0.02-100^o/min
  • θD/θs independent 0.01^o/min to 50^o/min
• Min. step size: 0.0001^o

Make and Model

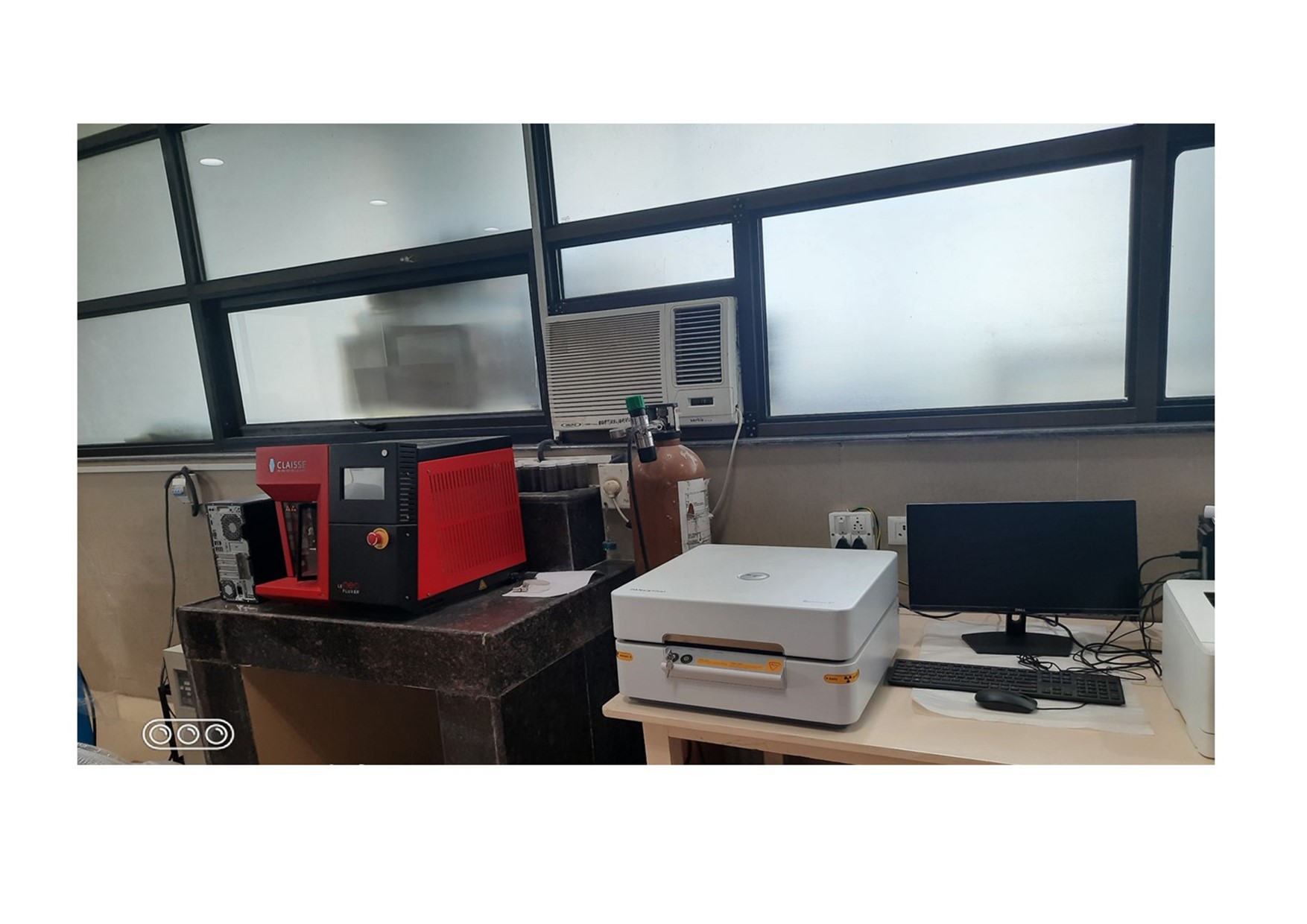

PANalytical, EPSILON 3X FUSION BEAD LENEO

Specifications

• Concentration range: ppm to percentage
• Excitation voltage 0-50 kV
• Excitation current 1mA

Make and Model

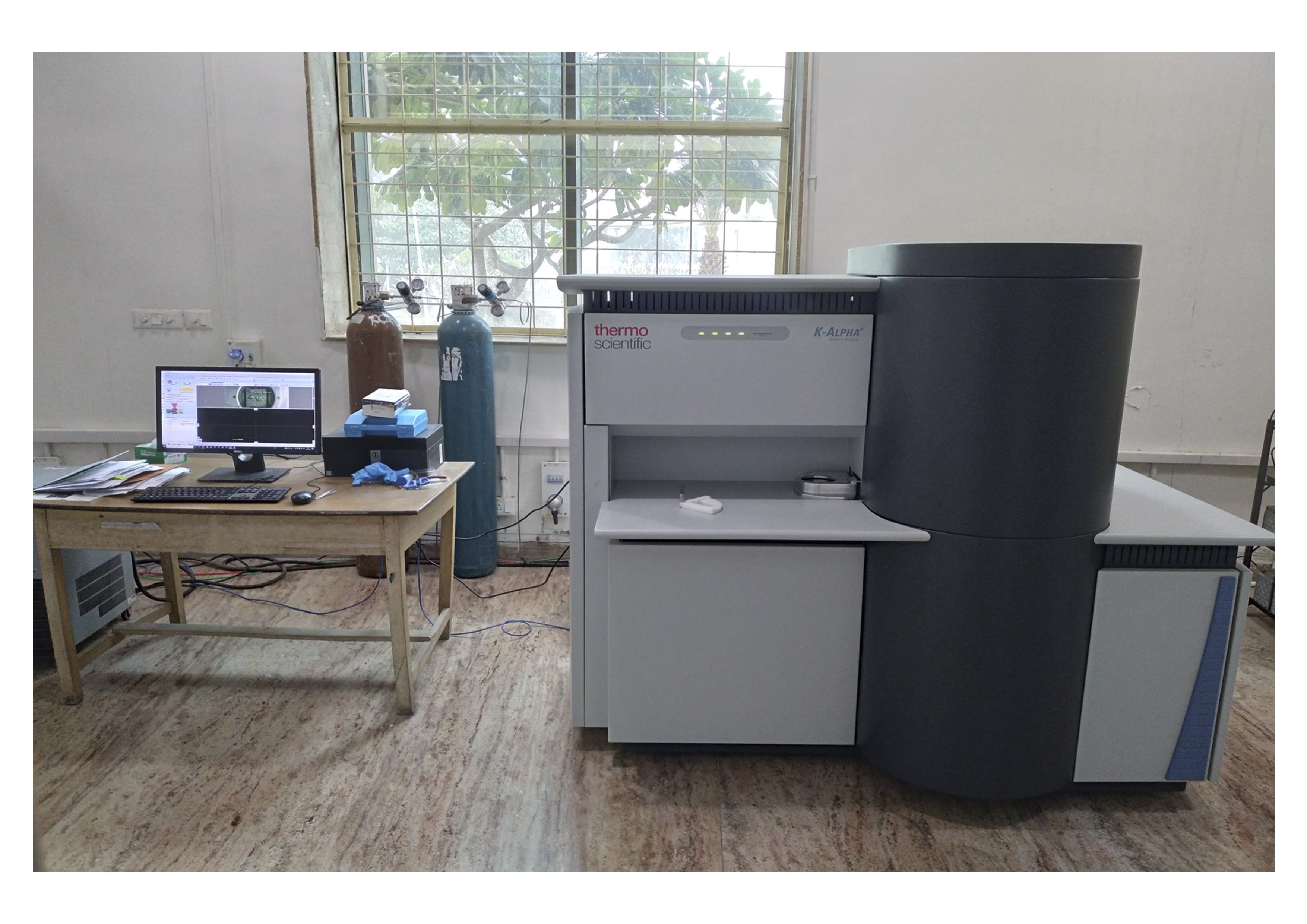

Thermo Fisher SCIENTIFIC

Specifications

• Analyzer
  • 180° double-focusing hemispherical analyzer
  • High-efficiency electron transfer lens
  • 128-channel detector
• X-ray Source
  • Al Kα micro-focused monochromator
  • Variable spot size (30–400 µm in 5 µm steps)
• Charge Compensation
  • Dual-beam source
  • Ultra-low energy co-axial electron and Ar+ ion beam Charge Compensation
• EX06 Ion Gun
  • Energy range 100 eV to 4 keV
• Sample Handling
  • 4-axis sample stage
  • 60 X 60 mm sample area
  • 20 mm maximum sample thickness
• Vacuum System
  • Two 250 l/s turbo molecular pumps
  • Auto-firing, 3-filament TSP
• Software
  • Avantage software including offline data processing sampling capabilities
  • Tilt Module
  • Sample Bias Module
